HARTMANN WHEELS · AUDI & VW
HRS7-163-MA:M
FROM$399
The Hartmann HRS7-163-MA:M replica wheel is a split 5 spoke wheel finished in a Matte Anthracite paint, the outer face of the spokes and lip of the wheel are machined to a bright aluminum finish with a protective clearcoat finish. The HRS7-163-MA:M accepts an OEM Volkswagen centercap, part #3B7 601 171 XRW. The Hartmann HRS7-163-MA:M replica wheel has a 5×112 bolt pattern (PCD) and uses the OEM VW 14×1.5mm R13 ball seat lug bolts. 66.56 to 57.1 mm hub rings are included for required applications.
- Matte Anthracite Machined finish
- Guaranteed fitment
- OE quality and strength
- Uses OEM Volkswagen R13 ball seat lug bolts
- Accepts OEM Volkswagen centercap #3B7 601 171 XRW
- TPMS compatible
- 12 month finish warranty
- Low pressure cast aluminum alloy (same as OEM manufacturing)
- Heat treated for high strength
- Tested to JWL, VIA, and TUV standards
FINISHES1 available
Matte Anthracite
CENTER BORE
66.56 mm
LUG SEAT
R13
FREE SHIPPING
Non-discounted, US only
12-MO. WARRANTY
Finish defects only
OEM TOLERANCE
Hub rings & caps fit
SECTION · 01
Sizes & Specs
| Size | Bolt Pattern | Offset | Center Bore | Lug Seat | Construction | Load Rating | Weight | Price |
|---|---|---|---|---|---|---|---|---|
| 19″ × 8.50″ | 5x112 | ET25 | 66.56 mm | R13 | Cast aluminum | — | — | $399 |
| 19″ × 8.50″ | 5x112 | ET25 | 66.56 mm | R13 | Cast aluminum | — | — | $399 |
| 19″ × 8.50″ | 5x112 | ET38 | 66.56 mm | R13 | Cast aluminum | — | — | $399 |
| 19″ × 8.50″ | 5x112 | ET38 | 66.56 mm | R13 | Cast aluminum | — | — | $399 |
| 19″ × 8.50″ | 5x112 | ET47 | 66.56 mm | R13 | Cast aluminum | — |
SECTION · 02
Hartmann HRS7-163-MA:MAudi & Volkswagen Vehicle Fitment
MAKE
DIAMETER
| Make | Model | Years | Fitments |
|---|---|---|---|
| Audi | 8P A3 | 2006–2013 | 19″ ET47 |
| Audi | 8V A3 | 2015–2020 | 19″ ET3819″ ET4720″ ET40 |
| Audi | B5 A4 | 1996–2001 | 19″ ET38 |
| Audi | B6 A4 | 2002–2005 | 19″ ET38 |

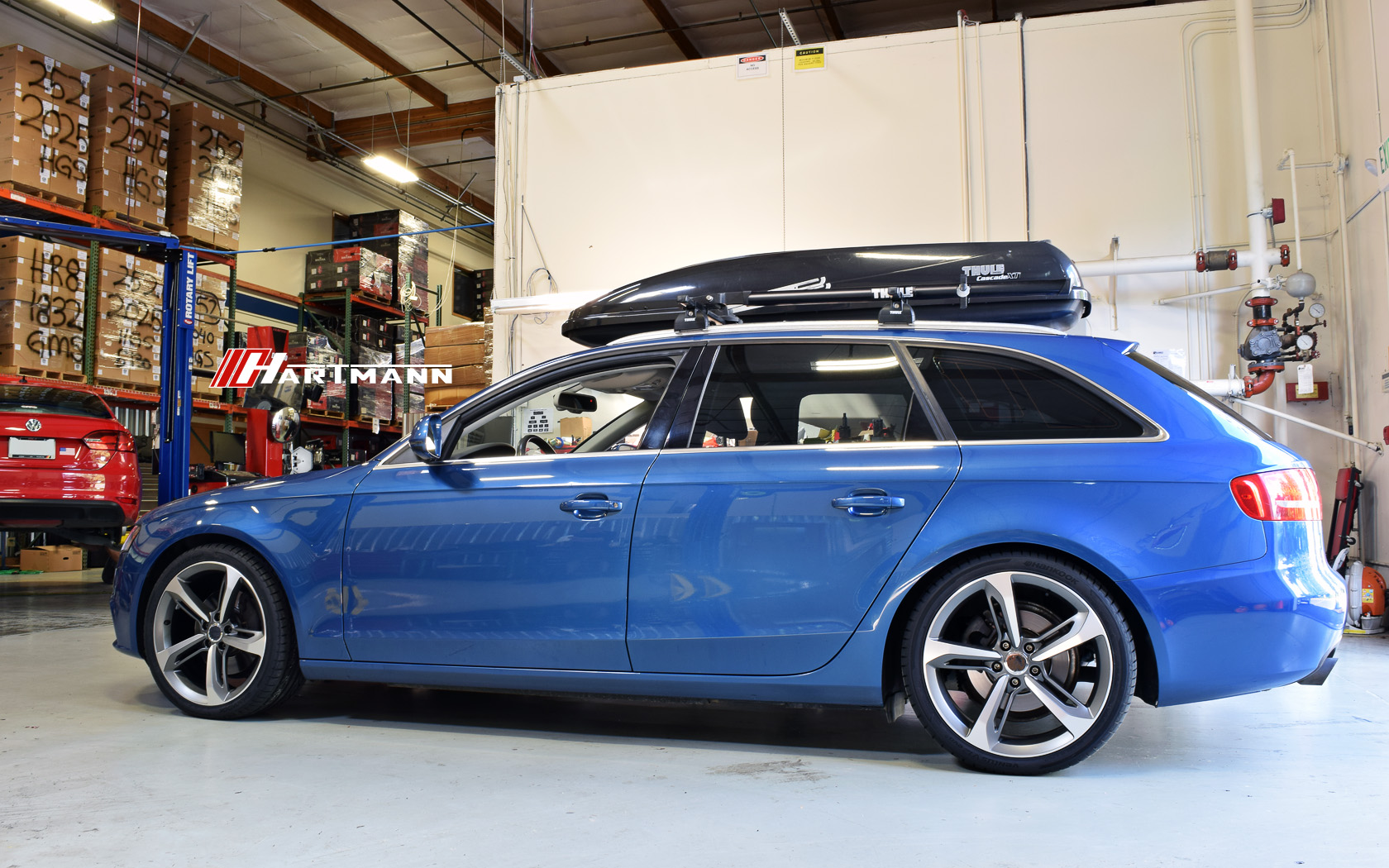

| Audi | B8 A4 | 2009–2016 | 19″ ET3820″ ET40 |
| Audi | B9 A4 | 2017–present | 19″ ET3820″ ET40 |
| Audi | B8 A5 | 2008–2016 | 19″ ET2519″ ET3820″ ET29 |
| Audi | B9 A5 | 2018–present | 19″ ET2519″ ET3820″ ET2920″ ET40 |
| Audi | C5 A6 | 1998–2004 | 19″ ET2519″ ET38 |
| Audi | C6 A6 | 2005–2011 | 19″ ET3819″ ET4720″ ET40 |
| Audi | C7 A6 | 2012–2018 | 19″ ET3819″ ET4720″ ET40 |
| Audi | C7 A7 | 2012–2018 | 19″ ET25 |
| Audi | D2 A8 | 1997–2002 | 19″ ET3820″ ET40 |
| Audi | D3 A8 | 2003–2011 | 19″ ET2519″ ET3820″ ET29 |
| Audi | D4 A8 | 2012–2018 | 19″ ET2519″ ET3820″ ET29 |
| Audi | 8U Q3 | 2015–present | 19″ ET3820″ ET40 |
| Audi | B8 Q5 | 2009–2016 | 19″ ET2519″ ET3820″ ET29 |
| Audi | FY Q5 | 2017–present | 19″ ET2519″ ET3820″ ET29 |
| Audi | B7 RS4 | 2006–2008 | 19″ ET25 |
| Audi | B8 RS5 | 2013–2016 | 19″ ET25 |
| Audi | B9 RS5 | 2018–present | 19″ ET2520″ ET29 |

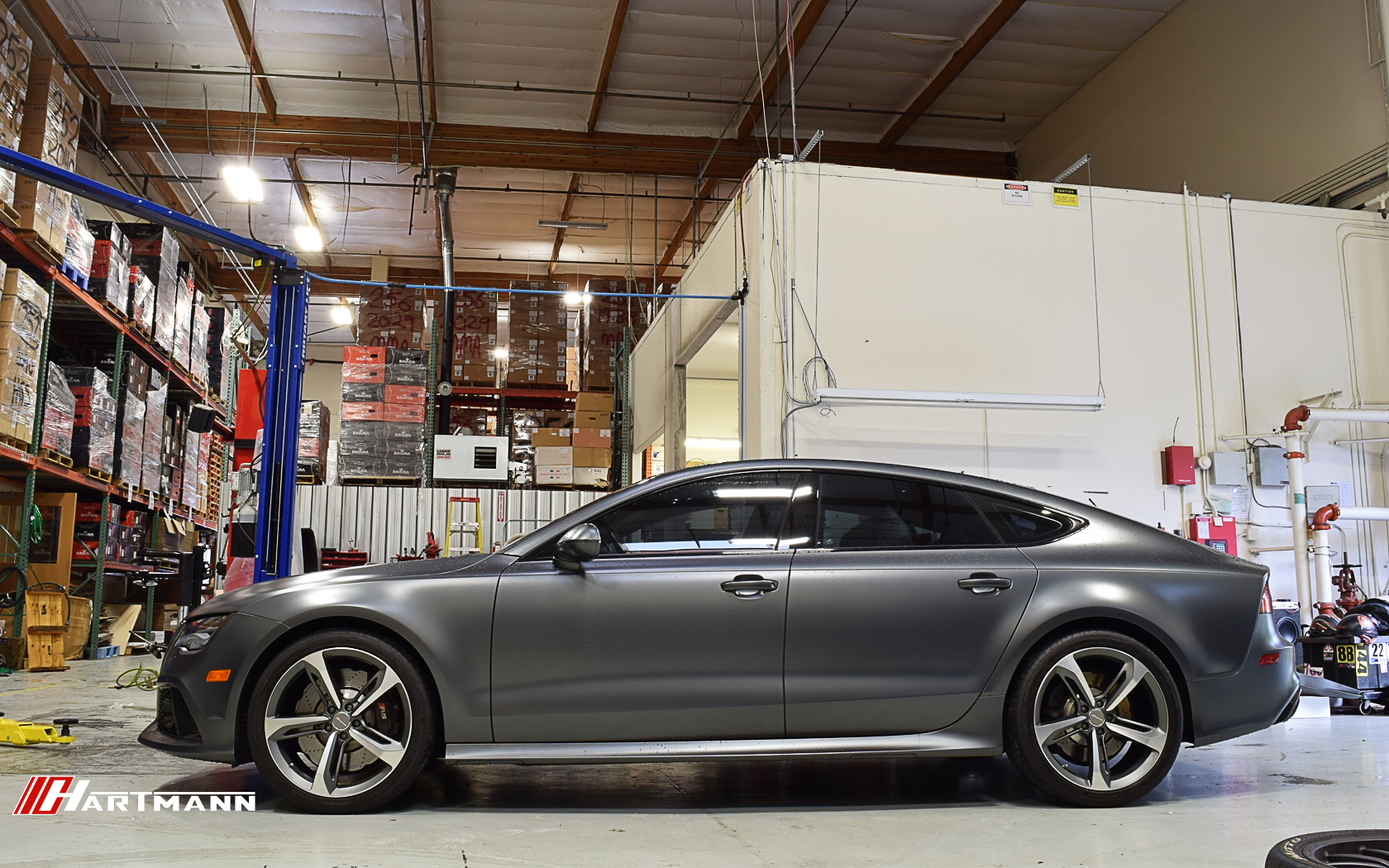

| Audi | C7 RS7 | 2014–2019 | 20″ ET29 |
| Audi | 8V S3 | 2015–2020 | 19″ ET3819″ ET4720″ ET40 |
| Audi | B6 S4 | 2004–2005 | 19″ ET38 |

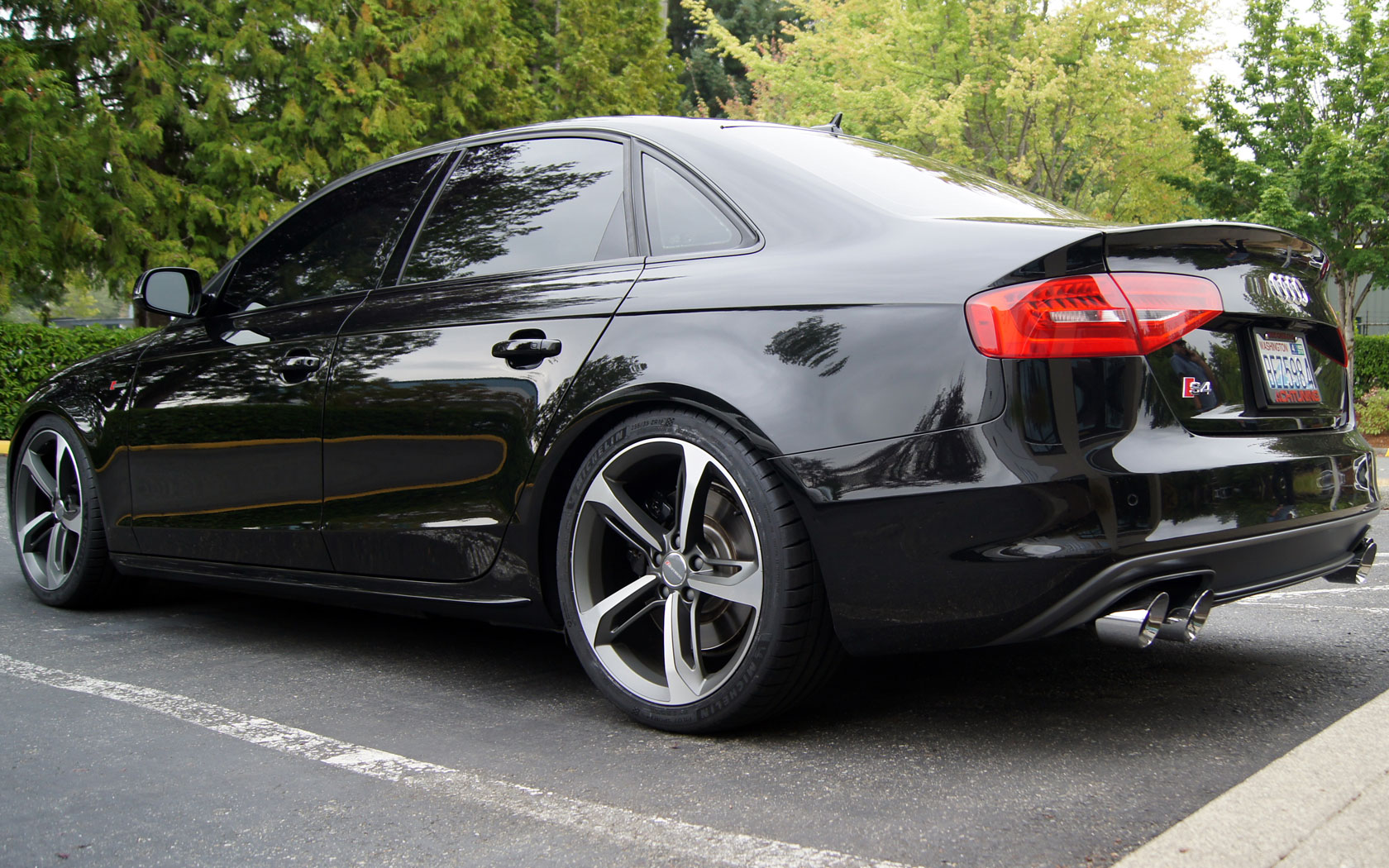

| Audi | B8 S4 | 2010–2016 | 19″ ET3820″ ET40 |
| Audi | B9 S4 | 2018–present | 19″ ET3820″ ET40 |

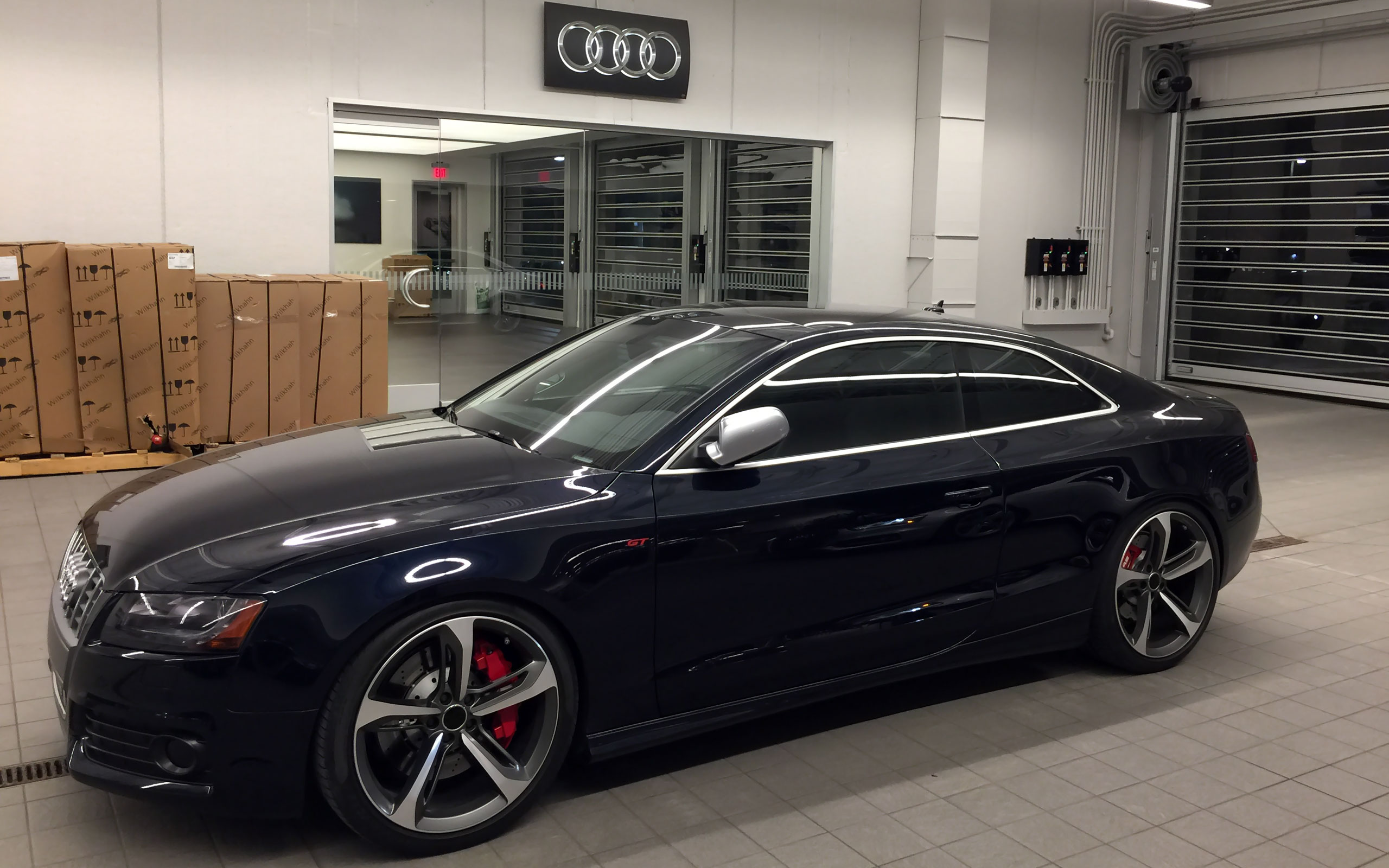

| Audi | B8 S5 | 2008–2016 | 19″ ET2519″ ET3820″ ET29 |
| Audi | B9 S5 | 2018–present | 19″ ET2519″ ET3820″ ET29 |
| Audi | C5 S6 | 2002–2003 | 19″ ET25 |
| Audi | C6 S6 | 2007–2011 | 19″ ET38 |
| Audi | C7 S7 | 2013–2018 | 19″ ET2520″ ET29 |
| Audi | D2 S8 | 2001–2003 | 19″ ET3820″ ET40 |
| Audi | D3 S8 | 2007–2012 | 19″ ET2519″ ET3820″ ET29 |
| Audi | B8 SQ5 | 2013–2016 | 19″ ET2520″ ET29 |
| Audi | FY SQ5 | 2018–present | 19″ ET2519″ ET3820″ ET29 |

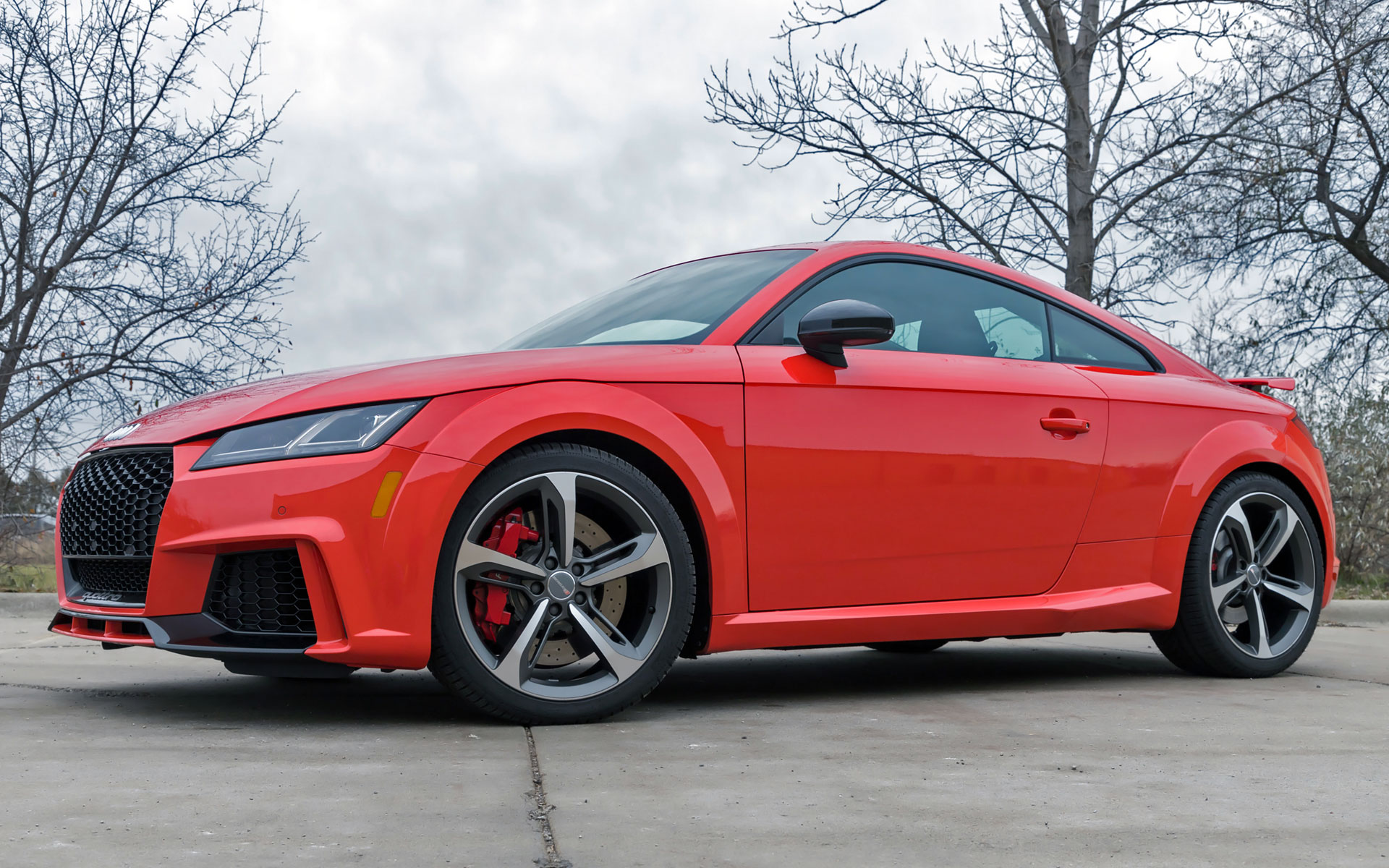

| Audi | Mk2 TT | 2007–2014 | 19″ ET47 |
| Audi | Mk3 TT | 2016–present | 19″ ET3819″ ET4720″ ET40 |
| Audi | Mk2 TTS | 2009–2014 | 19″ ET47 |
| Audi | Mk3 TTS | 2016–present | 19″ ET38 |
| Audi | C5 allroad | 2001–2005 | 19″ ET25 |
| Audi | B8 allroad | 2013–2016 | 19″ ET2519″ ET3820″ ET29 |
| Audi | B9 allroad | 2017–present | 19″ ET2519″ ET3820″ ET29 |
| Volkswagen | Mk7 Alltrack | 2017–2019 | 19″ ET47 |
| Volkswagen | Atlas | 2018–present | 19″ ET2519″ ET3820″ ET29 |
| Volkswagen | Mk2 Beetle | 2012–2019 | 19″ ET3820″ ET40 |

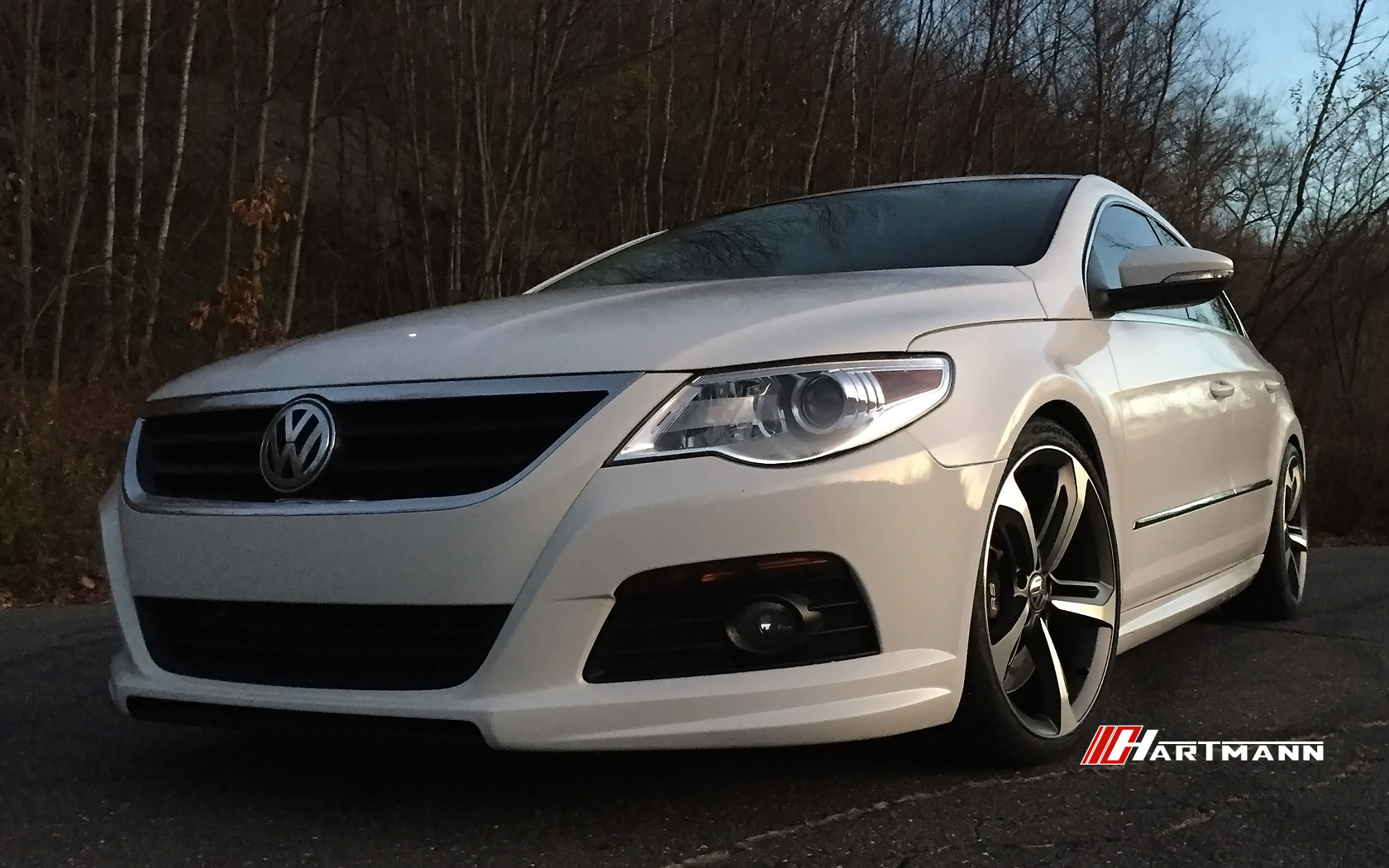

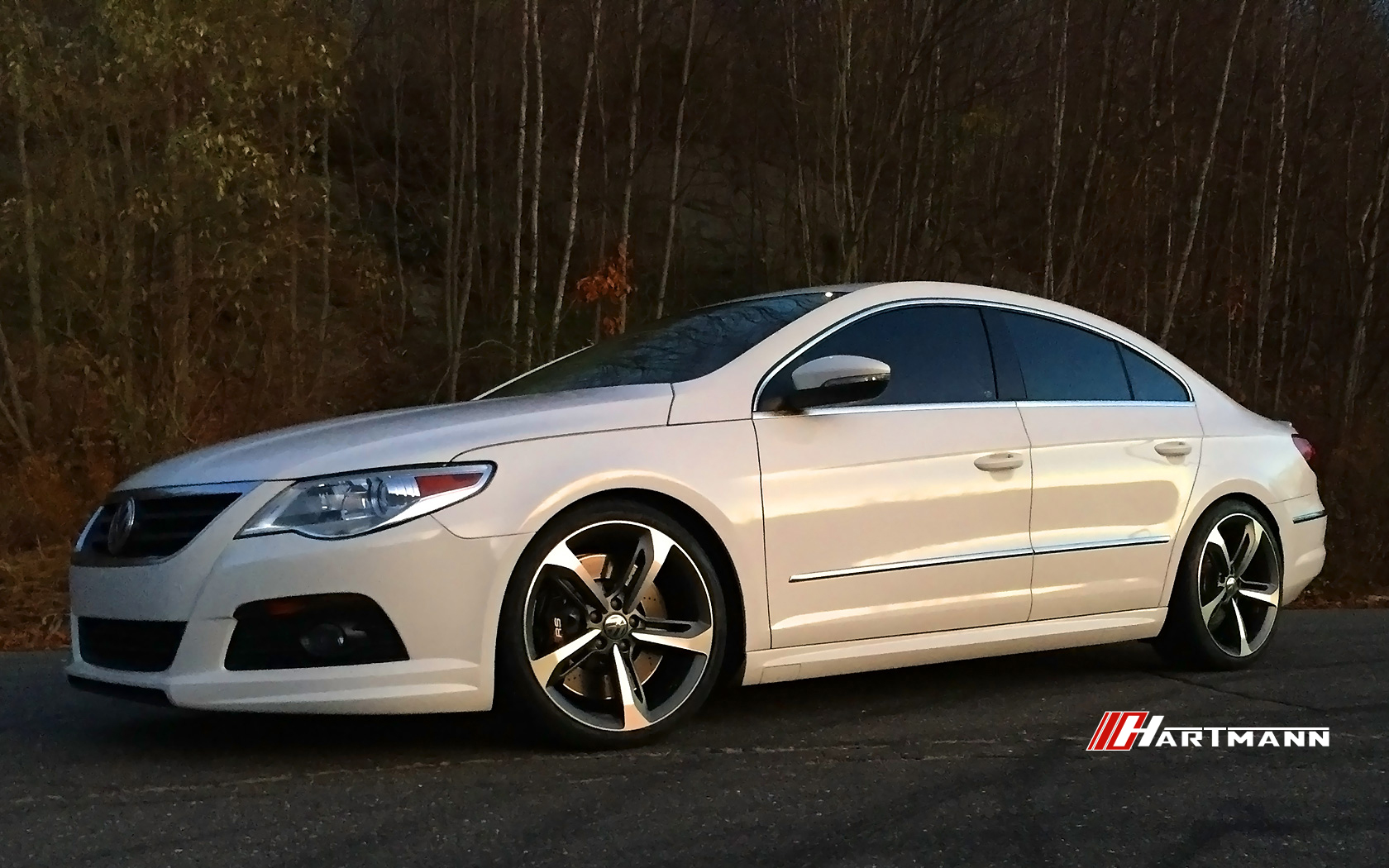

| Volkswagen | CC | 2009–2017 | 19″ ET3819″ ET4720″ ET40 |
| Volkswagen | Eos | 2007–2016 | 19″ ET47 |
| Volkswagen | Mk5 GLI | 2005–2010 | 19″ ET47 |
| Volkswagen | Mk6 GLI | 2011–2018 | 19″ ET47 |
| Volkswagen | Mk5 GTI | 2005–2010 | 19″ ET47 |
| Volkswagen | Mk6 GTI | 2010–2014 | 19″ ET47 |

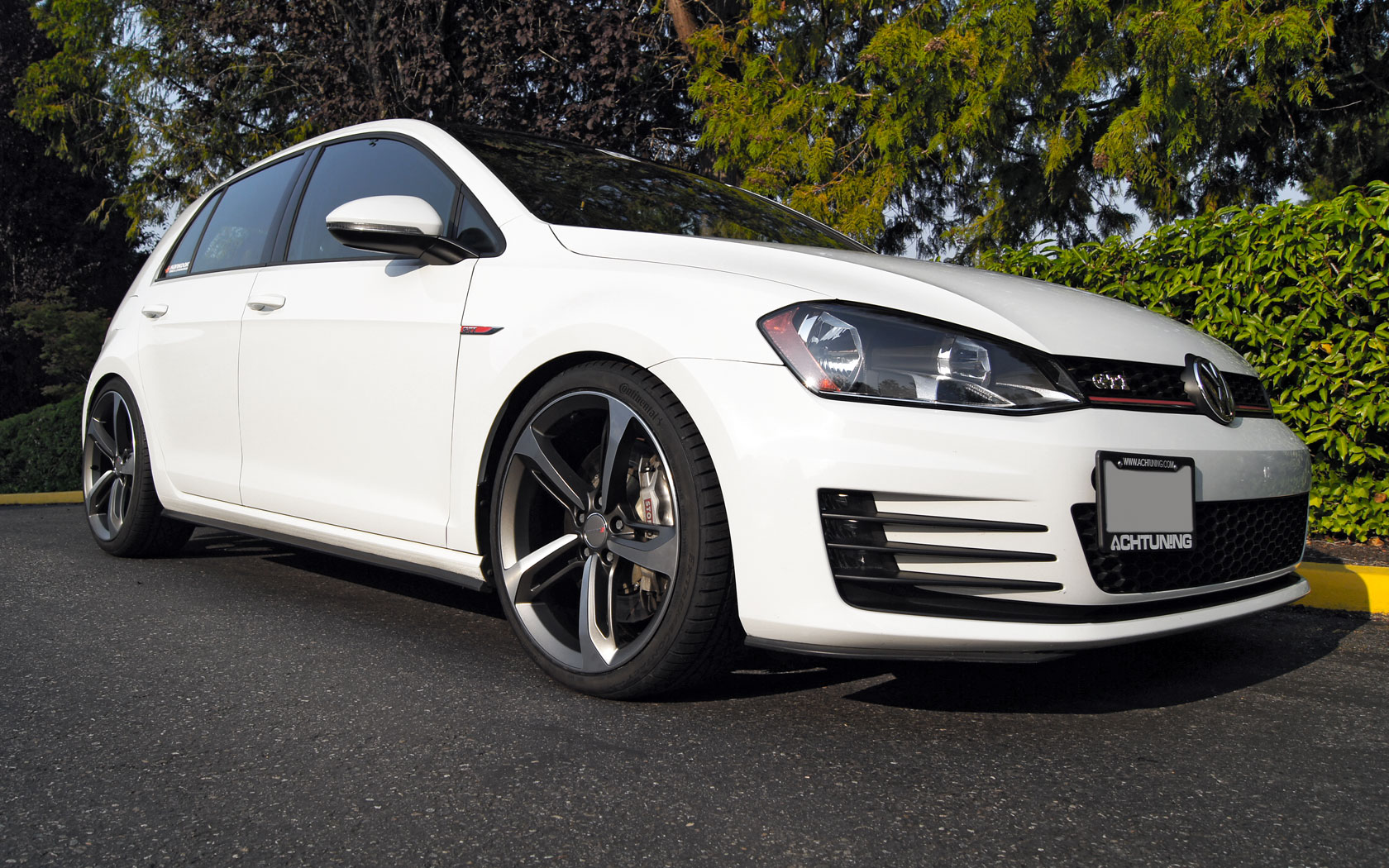

| Volkswagen | Mk7 GTI | 2015–2021 | 19″ ET47 |
| Volkswagen | Mk6 Golf | 2010–2014 | 19″ ET47 |
| Volkswagen | Mk7 Golf | 2015–2021 | 19″ ET47 |
| Volkswagen | Mk6 Golf R | 2012–2013 | 19″ ET47 |
| Volkswagen | Mk7 Golf R | 2015–2019 | 19″ ET47 |
| Volkswagen | Mk5 Jetta | 2005–2010 | 19″ ET47 |
| Volkswagen | Mk6 Jetta | 2011–2018 | 19″ ET47 |
| Volkswagen | B5 Passat | 1997–2005 | 19″ ET38 |
| Volkswagen | B6 Passat | 2006–2012 | 19″ ET47 |
| Volkswagen | B7 Passat | 2012–2019 | 19″ ET3819″ ET4720″ ET40 |
| Volkswagen | Phaeton | 2004–2006 | 19″ ET3820″ ET40 |
| Volkswagen | Mk5 Rabbit | 2006–2009 | 19″ ET47 |
| Volkswagen | Mk1 Tiguan | 2008–2018 | 19″ ET2519″ ET3820″ ET2920″ ET40 |
| Volkswagen | Mk2 Tiguan | 2018–present | 19″ ET3820″ ET40 |
SECTION · 03
Engineering
01 · CONSTRUCTION
Cast aluminum
Gravity-cast aluminum.
02 · OEM HARDWARE
Hub rings & caps
Engineered to accept OEM center caps; hub rings included where required.
03 · FINISH WARRANTY
12 months
Covers finish defects only — from the date of purchase.
04 · SHIPPING
Free in the U.S.
Non-discounted wheels, shipped wrapped and boxed.
